Optoma UHD30

4K UHD Home Theatre & Gaming Projector

Stunning 4K UHD and outstanding gaming smoothness

Embrace 4K UHD on a huge screen with the 3,400 lumens Optoma UHD30 projector. Capable of projecting images up to 302-inches, the UHD30 delivers incredible details and vibrant colours that transform your home into a home cinema.

Gamers can take advantage of the ultra-fast 1080p 240 Hz refresh rate for blur-free visuals with outstanding smoothness. Combining the blur-busting refresh rate with Enhanced Gaming Mode results in 16ms response time, or 25ms at 4K UHD, for a competitive gaming advantage.

HDMI 2.0 with HDCP 2.2 support ensures connectivity to the latest 4K UHD devices while a 12V trigger enables control of motorized screens. Up to 15,000-hour lamp life delivers many years of use with minimal maintenance when using Dynamic mode.

  • Bright 3,400 lumens with 500,000:1 contrast ratio for lights-on viewing
  • Ultra-fast 240 Hz refresh rate for unmatched 1080p gaming smoothness
  • Enhanced Gaming Mode delivers up to 16ms response time at 1080p, 240 Hz
  • 4K UHD (HDMI 2.0, HDCP 2.2) with HDR10 and HLG compatibility
  • Up to 15,000 hour lamp life reduces overall cost of ownership
  • Blu-ray 3D compatible
Categories: , SKU: Optoma-UHD30
  • Features
  • Specifications
  • Downloads
  • Video

DLP Technology®

DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments™ that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no colour degradation.

Amazing Colour

Our projectors are capable of reproducing the Rec.709 colour gamut, the international HDTV standard to guarantee accurate reproduction of cinematic colour exactly as the director intended.

Dynamic Black Technology

This feature gives more depth to your image by smoothly adjusting the lamp output to create a stunning high contrast ratio. Bright scenes appear crisp and clear, while dark scenes remain detailed with deep blacks and exceptional light and shade detail.

Ultra Detail

This technology ensures all the information contained in an image is accurately reproduced on the screen to give a stunning crystal clear, pin-sharp picture. Complex algorithms detect each frame and improve image sharpness before the frame is projected.

ISF Modes

This feature allows you to save your calibrated day and night mode settings for the ideal viewing experience.

Long Lamp Life

Reduce the number of lamp changes with long lamp life.

Enhanced Colour Wheel

An RGB colour wheel increases the colour ratio for richer, vivid and cinematic image.

HDR

High dynamic range (HDR) technology delivers brighter whites and deeper black levels. Optoma HDR accepts HDR10 signals with four selectable picture modes: Normal, Bright, Detail, and Film.

DCI-P3

Color the way it is meant to be seen – rich, colourful and cinematic pictures and games via DCI-P3 wide colour gamut coverage.

BT.2020

HDR signals are mapped using REC.2020 tone mapping and provides coverage for REC.709, DCI-P3 and a wide coverage color gamut.

3D Ready

Optoma 3D Ready projectors can output video and images at an astonishing rate of 120Hz, allowing you to show full-screen, full-color, stereoscopic 3D. Optoma 3D glasses required.

Enhanced Gaming Mode

Gaming Mode optimises the projector for lightning fast response times.

TECHNICAL SPECIFICATIONS
Aspect Ratio 16:9
Audio 5W
Brightness 3,400 ANSI lumens
Color Wheel RGBWRGBW 8 segment
Compatible Aspect Ratio 16:9 (native), 4:3 and LBX compatible

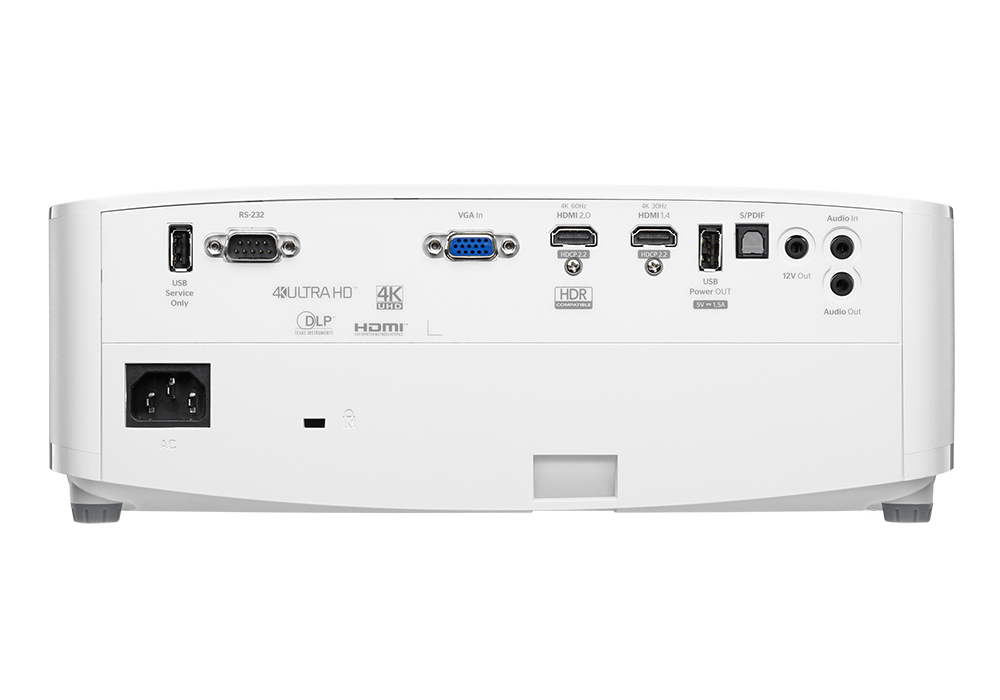

Connections HDMI 2.0 (w/ HDCP 2.2, MHL 2.1), HDMI 1.4a, VGA-in, audio-in (3.5mm), audio-out, S/PDIF out (optical), USB 2.0 (service port), USB power (5V, 1.5A), RS-232C, 12V Trigger
Contrast Ratio Up to 500,000:1 with Dynamic Black
Display Technology Texas Instruments™ 0.47” 4K UHD DMD
Displayable Colors 1.07 billion
Image Size 34.1” – 302.4
Keystone Correction ± 40° Vertical
Light Source Type 240W
Light Source Life 4,000/10,000/15,000 (Bright/ECO/Dynamic)
Maximum Resolution 1080p (1920 x 1080, 240Hz), 4K UHD (3840 x 2160, 60Hz)
Native Resolution UHD (3840 x 2160)
Noise Level 26dB
Offset 105% (± 5% variance)
Operating Temperature 41–104°F (5–40°C), 85% max humidity
Power Consumption 315W typical (Bright), 347W max (Bright), 225W typical (ECO), 248W max (ECO)
Power Supply AC Input 100-240V, 50-60Hz, auto-switching
Projection Distance 4’ – 49’ (without zoom)
Projection Lens F=1.94 ~ 2.23, f=12.81 ~ 16.74 mm manual focus
Projection Method Front, rear, ceiling count, tabletop
Projection Screen Size 34.1” – 302.4
Remote Control Full Function Home Remote Control
Throw Ratio 1.50 – 1.66 (with tolerance ±3%)
Uniformity 80%
Zoom Type 1.1x Optical (manual); 0.8 – 2.0 Digital
COMPATIBILITY SPECIFICATIONS
3D Compatibility Blu-ray 3D / Frame-pack: 1080p24, 720p50 / 60 (per eye) Sequential: 1080p24/30 (per eye)
Computer Compatibility 4K UHD 2160p, WUXGA, HDTV 1080p, UXGA, SXGA, WXGA+, WXGA (1366×768), WXGA, HDTV (720p), XGA, SVGA, VGA, PC and Mac compatible
Horizontal Scan Rate 31.000 to 135.000KHz
Optional Wireless No
RoHS Compatible
Vertical Scan Rate 24Hz to 120Hz
Video Compatiblity 4K UHD 2160p (24/50/60Hz), 1080p (24/50/60Hz), 1080i (50/60Hz), 720p (50/60Hz), 480i/p, 576i/p
PHYSICAL SPECIFICATIONS
Dimensions (W x H x D) 12.4” x 4.6” x 10.6”
Security Kensington® lock port, password (OSD)
Weight 8.6 lbs.
Other
What’s in the Box? UHD30, AC power cord, remote control, batteries for remote and quick start user manual
Accessories Part Numbers Lamp (replacement): BL-FP240E, Remote (replacement): BR-3003B, Universal mount: OCM815W, OCM818W-RU
UPC 796435 81 363 5
Warranty Info 1-Year parts and labor limited warranty on the projector, 90 days lamp warranty
